User manual for the universal remote control for QUATTROCLIMA QA-RG air conditioners

QUATTROCLIMA QA-RG Split System Remote Control. Operating Instructions

Compatibility of QUATTROCLIMA QA-RG Air Conditioner Remote Control

The QUATTROCLIMA QA-RG remote control is suitable for:

Semi-industrial CASSETTE split systems with constant capacity (2022) R410A Wireless remote QA-RG

QuattroClima QV-I12CG / QN-I12UG / QA-ICP9
QuattroClima QV-I18CG / QN-I18UG / QA-ICP9
QuattroClima QV-I24CG / QN-I24UG / QA-ICP10
QuattroClima QV-I36CG / QN-I36UG / QA-ICP10
QuattroClima QV-I48CG / QN-I48UG / QA-ICP10
QuattroClima QV-I60CG / QN-I60UG / QA-ICP10

Semi-industrial FLOOR-CEILING split systems with constant capacity (2022) R410A Wireless remote QA-RG

QuattroClima QV-I18FG / QN-I18UG
QuattroClima QV-I24FG / QN-I24UG
QuattroClima QV-I36FG / QN-I36UG
QuattroClima QV-I48FG / QN-I48UG
QuattroClima QV-I60FG / QN-I60UG

Semi-industrial DUCTED split systems with constant capacity (2022) R410A Wireless remote QA-RG

QuattroClima QV-I18DG / QN-I18UG
QuattroClima QV-I24DG / QN-I24UG
QuattroClima QV-I36DG / QN-I36UG
QuattroClima QV-I48DG / QN-I48UG
QuattroClima QV-I60DG / QN-I60UG

.

Safety Precautions

➠ The remote control is not a toy. Do not allow children to play with it and do not use it as a toy yourself.

➠ When using the remote control, point it at the indoor unit of the air conditioner and press the buttons. The indoor unit will confirm receipt of the signal with a short beep.

➠ The remote control signals can be received at a distance of up to 8 meters in a straight line from the indoor unit, at an angle of up to 45° to the left and right of it. Ensure that there are no objects blocking the signal path between the remote control and the unit.

➠ Keep the remote control at least 1 meter away from television and radio equipment.

➠ Do not drop the remote control or subject it to strong impacts. Protect the remote from direct sunlight, do not leave it near heat sources, avoid water ingress, and do not store it in high-humidity locations.

➠ Do not use sharp objects to press the buttons to avoid damaging the remote control. Do not clean the remote with gasoline, solvent, chemically treated wipes, or other aggressive substances.

➠ If the remote control does not work properly, remove the batteries, wait 30 seconds, and reinsert them. If the remote still does not work, replace the batteries.

❗👉➨ Remove the batteries from the remote control if you do not plan to use it for an extended period.

❗👉➨ Attention The manufacturer reserves the right to make changes to the design, configuration, or manufacturing technology of the remote control without prior notice.

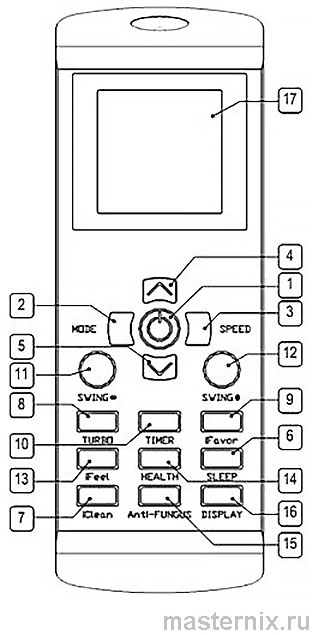

Designation of Remote Control Elements and Their Functions

The provided image shows a standard remote control with all functional buttons displayed. They may slightly differ from the functional buttons of your remote control depending on the model.

1. ON/OFF (Power Button)

Pressing the button turns on the air conditioner, and the "ON" indicator appears on the remote control display. Pressing it again turns off the air conditioner, and the "OFF" indicator appears on the display. When the air conditioner is turned on, the previous operating settings are restored.

2. MODE (Mode Selection)

Each press of the button changes the operating mode of the air conditioner in the following sequence:

... → AUTO (Automatic) → Cool (Cooling) → Dry (Dehumidification) → Heat (Heating) → Fan (Ventilation) → ...

❗👉➨ In air conditioners operating in “cooling only” mode, the heating mode is not available.

When first switched on, the device defaults to AUTO (Automatic operating mode).

In automatic mode, the air conditioner automatically selects cooling or heating depending on the room air temperature, creating comfortable conditions for the user. The target temperature is not displayed on the remote control display and cannot be changed.

In ventilation mode, the air conditioner operates only the indoor unit fan. In this mode, the air conditioner does not maintain the room temperature. The target temperature is not displayed on the remote control display and cannot be changed.

❗👉➨ Attention The air conditioner does not supply fresh air!

..

3. SPEED Button (Fan Speed)

Each press of the button changes the indoor unit fan speed (airflow speed) in the following sequence:

... → Automatic → Low → Medium → High → ...

The remote control display shows the indication of the corresponding fan speed:

... - "AUTO" (Automatic) - "LOW" (Low) - "MID" (Medium) - "HIGH" (High) - ...

The automatically set fan speed depends on the difference between the set target temperature and the ambient air temperature.

❗👉➨ In ventilation mode, the automatic fan speed mode is not available.

4. Button for Increasing Target Temperature

Each press of the button increases the target temperature by 1°C within the range of +16°C to +32°C. The set target temperature is displayed on the remote control display and the indoor unit front panel.

5. Button for Decreasing Target Temperature

Each press of the button decreases the target temperature by 1°C within the range of +16°C to +32°C. The set target temperature is displayed on the remote control display and the indoor unit front panel.

6. SLEEP Button (Night Mode)

Pressing the button activates night mode, the "SLEEP" indicator appears on the remote control display, and the display on the indoor unit front panel turns off. In this mode, the indoor unit fan operates at low speed, and the temperature maintained by the air conditioner changes as follows:

When the air conditioner is turned off or the button is pressed again, the mode will be disabled.

7. iCLEAN Button (Cleaning)

Pressing the button when the air conditioner is turned off activates the indoor unit cleaning mode. The “iCLEAN” indicator and “CL” symbols appear on the remote control display, while the “CL” symbols appear on the indoor unit front panel display. Cleaning is necessary to remove moisture from the surface of the evaporator and the internal cavities of the unit.

Moisture removal prevents the growth of bacteria and the formation of mold inside the unit. The cleaning cycle lasts 35 minutes.

When the air conditioner is turned off or the button is pressed again, the mode will be deactivated.

8. TURBO Button (High-Power Mode)

Pressing the button while the air conditioner is operating in cooling or heating mode activates the high-power operation mode. The indoor unit fan rotates at maximum speed, ensuring the fastest possible cooling or heating of the room to quickly reach the set target temperature. The “TURBO” indicator appears on the remote control display.

When the operating mode is changed, when the fan speed is adjusted, or when the TURBO button is pressed again, the high-power mode will be turned off.

9. iFAVORIT Button (Favorite)

This button activates the favorite settings memory function – “iFAVORIT”.

Pressing the button while the air conditioner is running applies the user’s pre-saved operating settings, and the “iFAVORIT” indicator appears on the remote control display. Pressing the button again restores the settings that were in use before this mode was activated.

To save user settings, first set the desired parameters, then press and hold the iFAVORIT button for more than 3 seconds. The parameters are stored when the “iFAVORIT” indicator on the remote control display blinks three times.

10. TIMER Button (Timer)

Setting the Air Conditioner Switch-On Timer (TIMER ON)

Pressing the TIMER button when the remote control is off activates the switch-on timer. The “TIMER ON” indicator and timer time are displayed. The time can be set from 0.5 hours (30 minutes) to 24 hours.

To set the desired switch-on time, press the (4) or (5) button. Each press changes the time by 0.5 hours (30 minutes). Once the timer value reaches 10 hours, each press changes the time by 1 hour.

To activate the switch-on timer, press the TIMER button again. The remote control display will show the air conditioner settings that will be applied when it switches on by the timer. These settings can be changed if necessary.

After the set time has elapsed, the air conditioner will automatically switch on with the configured settings.

Setting the Air Conditioner Switch-Off Timer (TIMER OFF)

Pressing the TIMER button when the remote control is on activates the switch-off timer. The “TIMER OFF” indicator and timer time are displayed. The time can be set from 0.5 hours (30 minutes) to 24 hours.

To set the desired switch-off time, press the (4) or (5) button. Each press changes the time by 0.5 hours (30 minutes). Once the timer value reaches 10 hours, each press changes the time by 1 hour.

To activate the switch-off timer, press the TIMER button again. After the set time has elapsed, the air conditioner will automatically switch off.

11. SWING 1 Button (Louver Swing)

Pressing this button activates the swing of the indoor unit’s vertical louvers, changing the horizontal direction of the airflow. The “SWING 1” indicator appears on the remote control display. Wait until the louvers reach the desired position, then press the button again to stop the swing.

❗👉➨ To avoid damage, do not adjust the louver position manually.

12. SWING 2 Button (Louver Swing)

Pressing this button activates the swing of the indoor unit’s horizontal louver, changing the vertical direction of the airflow. The “SWING 2” indicator appears on the remote control display. Wait until the louver reaches the desired position, then press the button again to stop the swing.

❗👉➨ To prevent condensation from forming on the louver, avoid directing the airflow downward for extended periods in cooling or dehumidification modes.

❗👉➨ To avoid damage, do not adjust the louver position manually.

13. iFEEL Button (My Atmosphere)

Pressing the button activates the performance control mode based on the temperature sensor built into the remote control.

The remote control display shows the room temperature at the location of the remote along with the “ROOM” indicator.

When the air conditioner is turned off or the button is pressed again, the mode will be deactivated.

14. HEALTH Button (Health)

Pressing the button activates the ionization mode, and the “HEALTH” indicator appears on the remote control display.

Pressing the button again turns off ionization mode.

15. Anti-FUNGUS Button (Mold Protection)

This function is designed to prevent mold from forming on the evaporator, which could subsequently cause unpleasant odors.

Pressing the button when both the remote control and the air conditioner are off activates the automatic indoor unit drying mode after the air conditioner is switched off. The “AntiFUNGUS” indicator appears on the remote control display. Mode activation is confirmed by a series of beeps following the initial five beeps that confirm the receipt of the command.

When this function is active, after each shutdown, before turning off completely, the indoor unit fan operates at low speed for an additional three minutes to cool the system.

During operation of this function and until it is completed, it is not recommended to turn the air conditioner back on.

The mode will continue to operate by default during subsequent shutdowns, unless the air conditioner is disconnected from power. Disconnecting from power or pressing the button again when both the remote control and the air conditioner are off will deactivate the Anti-FUNGUS mode.

Deactivation of the mode is confirmed by a series of beeps following the initial five beeps that confirm the receipt of the command.

16. DISPLAY Button (Display)

Pressing the button turns off the display backlight on the indoor unit front panel, and the “DISPLAY” indicator appears on the remote control display. Pressing the button again turns the front panel display backlight back on.

Remote Control Display

1. AUTO – indicator of automatic operating mode;
2. COOL – indicator of cooling mode;
3. DRY – indicator of dehumidification mode;
4. HEAT – indicator of heating mode;
5. FAN – indicator of ventilation mode;
6. HIGH, MID, LOW, AUTO – fan speed indicators;
7. SET – target temperature indicator;
8. ROOM – room temperature indicator;
9. SWING 1 – vertical louver swing indicator;
10. SWING 2 – horizontal louver swing indicator;
11. iFAVORIT – indicator of activated user settings;
12. HEALTH – ionization mode indicator;
13. LOCK – remote control key lock indicator;
14. DISPLAY – indicator of front panel display backlight off;
15. Anti-FUNGUS – indicator of automatic indoor unit drying mode after shutdown;
16. EHeater – not used;
17. iCLEAN – indicator of activated indoor unit self-cleaning function;
18. SLEEP – night mode indicator;
19. ON/OFF – air conditioner on/off indicators;
20. Temperature value;
21. TIMER ON/TIMER OFF – air conditioner timer on/timer off indicators;
22. SPEED, HIGH, MID, LOW, AUTO – fan speed indicators;
23. TURBO – high-power mode indicator.

.

Air Conditioner Operation

Air Conditioner Operating Sequence in Various Modes

➠ In cooling or heating mode, the air conditioner maintains the set temperature with an accuracy of ±1°C.

➠ If the set temperature in cooling mode is lower than the ambient temperature by more than 1°C, the air conditioner will not switch on.

➠ If the set temperature in heating mode is higher than the ambient temperature by more than 1°C, the air conditioner will not switch on.

➠ In AUTO mode, the temperature is not adjusted manually. The air conditioner automatically maintains a comfortable temperature of 23±2°C. If the temperature is +20°C, the air conditioner will automatically start heating mode. At +26°C, the air conditioner will switch to cooling mode.

➠ In dehumidification (DRY) mode, the air conditioner maintains the set temperature with an accuracy of ±2°C. If, when the air conditioner is switched on, the room temperature is higher than the set temperature by more than 2°C, the air conditioner will operate in cooling mode.

➠ When the temperature drops more than 2°C below the set value, the compressor and outdoor unit fan stop, and the indoor unit fan runs at low speed.

➠ In “Sleep” mode while cooling, after the first hour of operation the set temperature is automatically increased by 1°C, and after the second hour by another 1°C. The set temperature then remains unchanged.

➠ In “Sleep” mode while heating, after the first hour of operation the set temperature is automatically decreased by 1°C, and after the second hour by another 1°C. The set temperature then remains unchanged.

❗👉➨ In “Sleep” mode, the TIMER function cannot be activated.

Operating Procedure

1. After connecting the air conditioner to the power supply, press the ON/OFF button to switch it on.

2. Use the MODE button to select the cooling (COOL) or heating (HEAT) mode.

3. Press the TEMP button.

4. Use the (4) or (5) buttons to set the desired temperature within the range of 16°C to 30°C.
In AUTO mode, the temperature is set automatically and cannot be adjusted from the remote control.

5. Use the FAN button to select the desired fan speed:

AUTO FAN (automatic), LOW – low speed, MID – medium speed, HIGH – high speed.

6. Use the SWING 1 (11) and SWING 2 (12) buttons to set the louver swing mode. To activate the SLEEP, TIMER, TURBO, or LIGHT functions, press the corresponding buttons.

Replacing the Remote Control Batteries

1. Slide the cover on the back of the remote control.

2. Insert two AAA alkaline batteries, making sure they are installed according to the indicated polarity.

❗👉➨ NOTE
➠ Replace the batteries if the LCD display does not light up or if the remote control cannot be used to change air conditioner settings.
➠ Use new AAA batteries.
➠ If the remote control will not be used for more than one month, remove the batteries.

..

Emergency Switch

➠ In case of loss or malfunction of the wireless remote control, the air conditioner can be switched on or off using the emergency switch.

Operating the Air Conditioner Without a Remote Control

If you have lost the remote control or it is not working, follow these steps:

➠ To turn on the air conditioner, briefly press the emergency control button. The air conditioner will switch on in automatic mode.

➠ Carefully close and secure the front panel of the indoor unit.

➠ To turn off the air conditioner, briefly press the emergency control button again.

❗👉➨ NOTE
Do not hold the buttons pressed for a long time, as this may cause the air conditioner to malfunction.
