Operating Instructions Maxwell MW-3701 W – Steam Brush

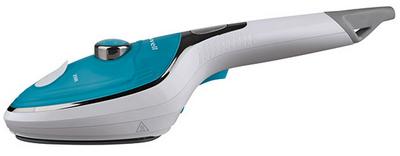

STEAM BRUSH MW-3701 W
The device is intended for ironing and cleaning various types of fabrics and furniture.

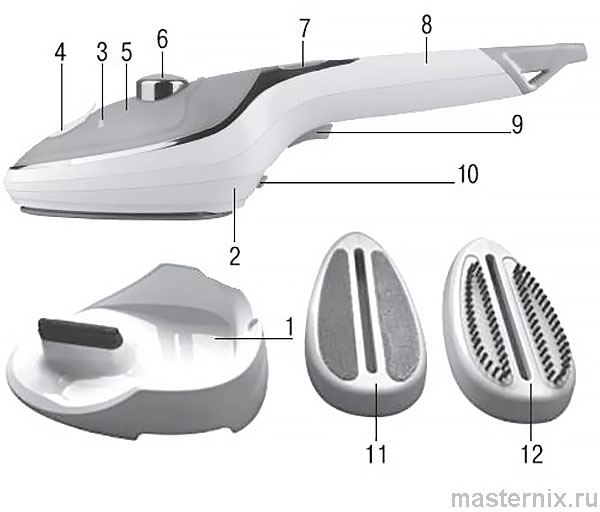

DESCRIPTION

1. Stand
2. Soleplate
3. Maximum water level indicator “MAX”
4. Filling hole cover
5. Water tank
6. Temperature control
7. Soleplate heating indicator
8. Handle
9. Steam supply button
10. Attachment release button
11. Furniture cleaning attachment
12. Brush attachment
13. Measuring cup

.

WARNING!!

For additional protection, it is advisable to install a residual current device (RCD) in the power supply circuit with a rated operating current not exceeding 30 mA. Contact a specialist to install the RCD.

SAFETY MEASURES

Before operating the electrical appliance, carefully read this manual and keep it for reference. Use the device only for its intended purpose, as described in this manual.

Improper handling of the appliance may result in damage to the appliance, injury to the user, or damage to the user’s property.

➠ Before switching on the steam brush for the first time, make sure that the mains voltage corresponds to the operating voltage of the device.

➠ The power cord is equipped with a “Euro plug”; connect it to a socket with a reliable grounding contact.

➠ To avoid the risk of fire, do not use adapters when connecting the device to an electrical outlet.

➠ To avoid overloading the electrical network, never operate several high-power devices simultaneously.

➠ Do not allow the power cord to come into contact with hot surfaces, sharp objects, or furniture edges. Avoid damaging the insulation of the power cord.

➠ During breaks in operation, place the device on the stand on a flat, stable, heat-resistant surface.

➠ The device is not intended for use outdoors or in the bathroom.

➠ Do not use the device near heat sources or open flames.

➠ Do not use the device in close proximity to water.

➠ Before using the appliance, carefully inspect the power cord and ensure that it is not damaged. If damage to the power cord is found, do not use the device.

➠ Use only the attachments included in the package. Before using the device, make sure the attachment is installed correctly and the filling hole cover is tightly closed.

➠ Do not pour aromatic liquids, vinegar, starch solutions, descaling agents, chemicals, or similar substances into the water tank.

➠ Always disconnect the device from the mains before cleaning it, removing/attaching attachments, filling or emptying the water tank, or if you are not using the device.

➠ Before connecting or disconnecting the device to or from the mains, set the temperature control to the “min” position.

➠ Do not block the steam outlet openings or insert foreign objects into them.

➠ WARNING!! The surfaces of the device heat up during operation. To avoid burns, do not touch hot surfaces or place exposed body parts near the steam outlet openings.

➠ During operation, beware of burns from hot steam escaping from the steam outlet openings.

➠ Use the appliance strictly as intended. Never steam clothes while they are worn on a person, as the steam temperature is very high. Always hang clothes on hangers.

➠ Do not point the steam brush at people, animals, plants, as well as furniture, electrical appliances, books, or any items that can be damaged by hot steam.

➠ Do not immerse the appliance body, power cord, or plug into water or any other liquids.

➠ Do not touch the appliance body or power plug with wet hands.

➠ Do not leave the appliance connected to the mains unattended.

➠ Clean the device regularly.

➠ Before cleaning the device, unplug it and allow it to cool completely.

➠ Supervise children to prevent them from using the appliance as a toy, and do not allow them to touch the appliance body or power cord during operation.

➠ This appliance is not intended for use by children under 8 years of age.

➠ Place the appliance during operation and cooling in areas inaccessible to children under 8 years of age.

➠ Children aged 8 and above, and persons with reduced physical, sensory, or mental capabilities may use the device only under supervision by a person responsible for their safety and if they have been given appropriate and clear instructions on safe use and the hazards that may arise from improper use.

➠ For child safety reasons, do not leave plastic bags used for packaging unattended.

❗👉➨ Warning! Do not allow children to play with plastic bags or film. Risk of suffocation!

➠ Install and remove attachments only after the device has completely cooled down.

➠ When disconnecting the device from the mains, never pull on the power cord. Take hold of the plug and carefully remove it from the socket.

➠ Periodically check the condition of the power cord, power plug, and appliance body.

➠ Do not use the device if there is damage to the power cord or power plug, if the device operates intermittently, or after it has been dropped, in case of water leakage, or if there is visible damage.

➠ Do not attempt to repair the appliance yourself. Do not disassemble the appliance yourself. In case of any malfunction, or after the device has been dropped, unplug it and contact any authorized service center at the contact addresses specified in the warranty card and on the website www.maxwell-products.ru

➠ Transport the device only in the original packaging.

➠ Before storing the device, allow it to cool completely and drain any remaining water.

➠ Store the device in a place inaccessible to children and persons with reduced capabilities.

THE DEVICE IS INTENDED FOR HOUSEHOLD USE ONLY

..

Before First Use

❗👉➨ If the device has been transported or stored at low temperature, it must be kept at room temperature for at least three hours before use.

There may be traces of water in the tank – this is normal, as the device underwent quality control at the factory.

– Unpack the device and remove any stickers that may interfere with its operation.
– Check the integrity of the device; do not use it if there are any damages.
– Make sure that the operating voltage of the device corresponds to the mains voltage.
– Wipe the device body with a slightly damp cloth, then dry it thoroughly.

❗👉➨ Note: When switching on for the first time, the heating element of the device burns off, so a foreign smell and a small amount of smoke may appear. This is normal.

WATER SELECTION

It is recommended to use distilled water to fill the tank. Tap water may be used. If the tap water is hard, use distilled water.

FILLING THE WATER TANK

– Before pouring water into the tank (5), make sure the device is disconnected from the mains and the temperature control (6) is set to the “min” position.
– Open the filling hole cover (4) and use the measuring cup (13) to pour water into the tank (5).
– Do not pour aromatic liquids, vinegar, starch solution, descaling agents, chemicals, etc., into the tank (5).
– Do not fill above the “MAX” mark (3).
– Close the filling hole cover (4) tightly.

❗👉➨ Warning!
– Do not allow water droplets to get on the appliance body, power cord, or plug.
– If you need to refill water during operation, unplug the device from the electrical outlet first.

IRONING TEMPERATURE

Dry ironing is possible at any soleplate temperature (2). Steam ironing, vertical steaming, and fabric cleaning are possible only when the temperature control (6) is set to the “MAX” position; otherwise, water droplets may leak from the steam holes of the soleplate (2).

– Always check the garment label for the recommended ironing temperature before ironing.
– If there is no such label, but you know the fabric type, use the table below to select the temperature. The table applies only to smooth materials. For other types (pleated, textured, etc.), it is best to iron at a low temperature.

Fabric type (temperature)	Symbol
Nylon/acrylic/acetate (low temperature)	•
Silk/rayon/polyester (medium temperature)	••
Wool/cotton (high temperature)	•••
Linen (maximum temperature)	MAX

❗👉➨ See more about Clothing care symbols

– Sort clothes by ironing temperature: synthetics with synthetics, wool with wool, cotton with cotton, etc.
– The soleplate (2) heats faster than it cools, so start ironing at a low temperature (e.g., synthetics), then move on to higher temperatures (silk, wool). Cotton and linen should be ironed last.
– For blended fabrics, set the lowest temperature required for the fibers (e.g., for acrylic/cotton blend, set for acrylic “•”).
– If the fabric composition is unknown, test on an inconspicuous area.
– Gradually increase the temperature from the lowest until the desired result is achieved.
– Velvet and fabrics that easily become shiny should be ironed in the direction of the pile with light pressure.
– Silk and synthetic fabrics should be ironed on the reverse side.
– Do not perform vertical steaming on synthetic fabrics.
– When steaming, do not touch the material with the soleplate to avoid melting.
– Use attachments (11), (12) for fabric and furniture cleaning in steam ironing or vertical steaming mode (in this case, set the temperature control (6) to “MAX”).

USING THE DEVICE

– When switching on, water droplets or a small amount of steam may escape from the steam holes of the soleplate (2) even if the steam button (9) has not been pressed. This is normal.
– If no steam is released when pressing the button (9), check that there is enough water in the tank (5).
– Press the steam supply button (9) only after the soleplate (2) has reached the set temperature (the soleplate heating indicator (7) is off).
– During heating, breaks in work, and after use, place the device on a flat heat-resistant surface using the stand (1).
– Hold the device only by the handle (8) during operation.
– Never direct steam at a person or animal, and do not steam clothes being worn, as the steam temperature is very high. Use hangers.
– Before installing or removing attachments (11), (12), disconnect the device from the mains and allow it to cool. To install, align the slot on the inner side of the attachment (11) or (12) with the protrusion on the steam brush body and press until it clicks. To remove, press button (10) and remove the attachment.

Switching On

1. Before using the device in steam ironing, steaming, or fabric cleaning modes, ensure that there is enough water in the tank (5).

2. Place the device on a flat, heat-resistant surface using the stand (1).

3. Insert the power plug into an electrical outlet.

4. Using the temperature control (6), set the ironing temperature according to the fabric type and operating mode (see “Ironing Temperature”); the soleplate heating indicator (7) will light up.

5. When the soleplate (2) reaches the set temperature, the indicator (7) will turn off.

6. Hold the device by the handle (8) and remove it from the stand (1).

Operation

– Always hold the device only by the handle (8) during operation.
– To supply steam, press the button (9) firmly. Do not press the button more than three times in succession; allow 10–15 seconds between presses.
– To avoid water droplets forming, watch the soleplate heating indicator (7) and press button (9) only when the indicator (7) is off.

❗👉➨ Note:
– Never steam clothes being worn, as the steam temperature is high; use only hangers.
– After steaming, clothes must cool and dry, which may take some time.
– Do not direct steam at metal elements. Be cautious when steaming items with metal components.

Switching Off

7. Set the temperature control (6) to “min” and unplug the power cord from the outlet.

8. Place the device on the stand (1) and allow it to cool completely.

9. Open the filling hole cover (4), turn the device upside down, and drain any remaining water from the tank (5).

CLEANING AND MAINTENANCE

– Before cleaning, unplug the device and allow it to cool completely.
– Wipe the device with a soft, slightly damp cloth, then dry it thoroughly.
– Deposits on the soleplate (2) can be removed with a cloth moistened in a water-vinegar solution.
– After removing deposits, wipe the surface of the soleplate (2) with a dry cloth.
– Rinse the tank (5) with warm water periodically.
– Attachments (11), (12) can be washed in warm water with a small amount of mild detergent after removing them from the device. Store them after they have dried.
– Do not use solvents or abrasive cleaners.
– Do not immerse the device, power cord, or plug in water or any other liquids.

Storage

– Unplug the device and allow it to cool completely.
– Remove attachments if installed.
– Clean the device.
– Store in a cool, dry place, out of reach of children.

PACKAGE CONTENTS

Steam brush – 1 pc.
Brush attachment – 1 pc.
Furniture cleaning attachment – 1 pc.
Measuring cup – 1 pc.
Instruction manual – 1 pc.

TECHNICAL SPECIFICATIONS

Power supply: 220–240 V ~ 50 Hz
Power consumption: 1000 W

The manufacturer reserves the right to change the design and technical specifications of the device without prior notice.

Service life – 3 years

This product complies with all required European and Russian safety and hygiene standards.

Manufacturer: Star Plus Limited, Hong Kong
Address: Off. 1902-03, East Town Building, 41 Lockhart Road, Wanchai, Hong Kong.
Phone: +8 85225110112
Importer information is indicated on the individual packaging.
Information on authorized service centers is provided in the warranty card and on the website www.maxwell-products.ru
Unified information service: +7 (495) 921-01-70
Made in China
