User manual for the handheld steamer Xiaomi Mijia Handheld Ironing Machine Steamer (MJGTJ01LF)
Руководство / инструкция
Handheld Clothing Steamer Xiaomi Mijia Steamer MJGTJ02LF User Manual
Thank you for purchasing this product. Please read this user manual carefully before using the device, even if you are familiar with the device. This manual contains important safety instructions and proper maintenance guidelines for the device.
Technical Specifications
Type: Handheld steamer
Model: MJGTJ02LF
Power: 1200 W
Maximum panel temperature: 130 degrees Celsius
Panel material: Aluminum
Heating time: 30 seconds
Water tank capacity: 150 ml
Power source: Mains power
Input parameters: 220V ~50 Hz
Electric shock protection class: II
Features: Steam output 22 g/min, overheating protection
Body material: Plastic
Cord length: 2.2 m
Dimensions: 175 x 92 x 215 mm (including water tank)
Weight: 780 g
.

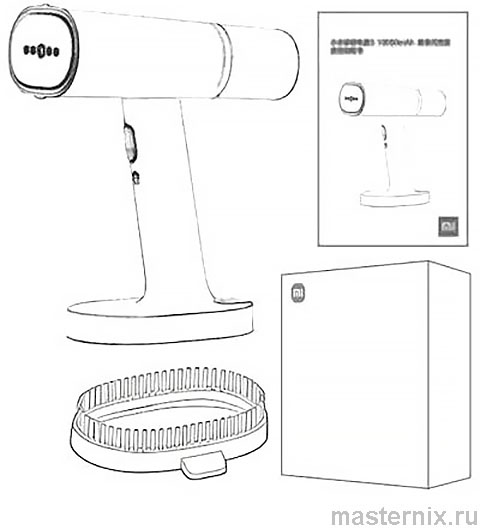

Package Contents
1. Steamer
2. Brush
3. Box
4. Instruction manual

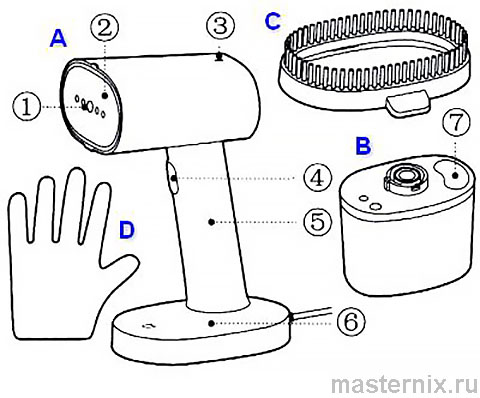

Device Description
Please read this manual carefully before using the device. Keep it for future reference.
A. Steamer
1. Steam outlet holes
2. Ironing surface
3. Indicator
4. Steam button
5. Steamer handle
6. Base
B. Water tank
7. Water tank cap
C. Lint cleaning attachment
D. Glove
..
Functions
The handheld clothing steamer Xiaomi Mijia Steamer MJGTJ02LF uses secondary evaporation technology to smooth out all types of wrinkles and fabrics. The gentle steam helps care for clothes and maintains their shape.
1. The Xiaomi handheld clothing steamer is very easy to operate, suitable for use at home and during travel; it is compatible with most types of clothing, curtains, and decorative fabrics, and can also be used to steam most types of knitwear.
2. The built-in closed micro-pressure tank generates high-temperature steam to soften the fabric and smooth wrinkles. Power is 1200 W, with fast preheating in 30 seconds and steam delivery by a single button; a large volume of steam penetrates the fibers of clothing from the inside, smoothing persistent wrinkles. In various situations, you can use vertical or horizontal steaming.
3. The aluminum cast surface delivers high-temperature steam twice, which increases drying speed and prevents condensation on the fabric. The steam temperature remains constant for comfortable ironing.
4. The device features overheating protection. When the temperature exceeds the safe range, the protection activates and the device automatically stops operating.
Preparation for Use
1. Filling the Water Tank
Open the tank cap, pour in the required amount of water, and securely close the cap.
2. Installing the Water Tank
Following the diagram and markings on the tank, attach the tank to the rear part of the device.
3. To install the lint cleaning brush attachment, hold the steamer handle with one hand and attach the brush with the other. You will hear a click when it is successfully installed.
❗👉➨ WARNING!: The device must be turned off and cooled down when installing or removing the lint cleaning brush.
❗👉➨ NOTE: Do not use the lint cleaning brush for cleaning other types of fabrics.
Operation
1. Power On
After installation, connect the power supply to an outlet that meets the device requirements and turn on the power.
2. Heating
After turning on, the device will begin heating, and the indicator will blink for approximately 30 seconds; once the set temperature is reached, the indicator will remain steadily lit, and you can begin using the device. If the temperature drops below the set level during operation, the device will start heating again, and the indicator will blink without affecting operation.
❗👉➨ WARNING!: Do not press the steam button within 30 seconds after turning on the device to avoid burns from water splashes.
❗👉➨ NOTE: Use the glove during operation as the device heats up.

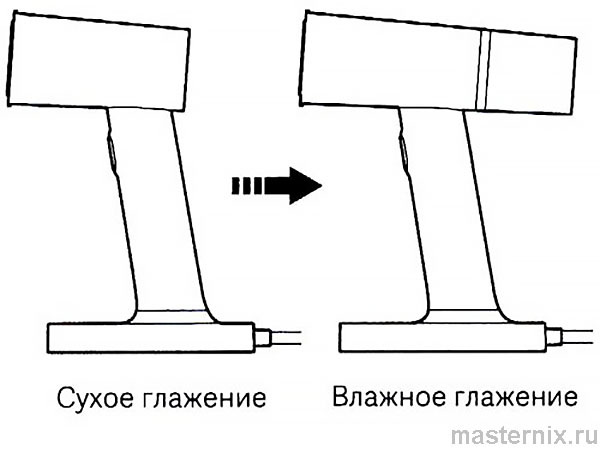

3. Dry Ironing Function
Once the iron is heated, you can use the ironing surface to iron clothes without pressing the steam button.
4. Wet Ironing Function
After the device heats up, press and hold the steam button to release steam, then begin ironing.
❗👉➨ WARNING!: To avoid burns, do not touch the ironing panel while the power is on.
Do not leave the ironing surface on fabric for an extended period.
Do not leave the device turned on unattended.
❗👉➨ NOTE: The sound produced by the water pump during operation is normal.
After steaming, water droplets remain in the main unit’s tube. Therefore, after releasing the steam button, a small amount of steam may continue to be emitted, which is normal.

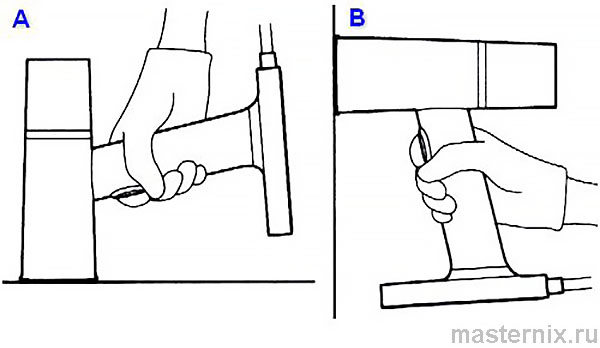

5. Vertical/Horizontal Mode
The device can be used in both horizontal and vertical positions, as shown in the diagram.
A. Horizontal ironing
B. Vertical ironing
6. Wool Ironing
Attach the lint cleaning brush to remove dust and lint from the fabric. Then remove the brush and turn on the power. For best results, it is recommended to use the dry ironing function.

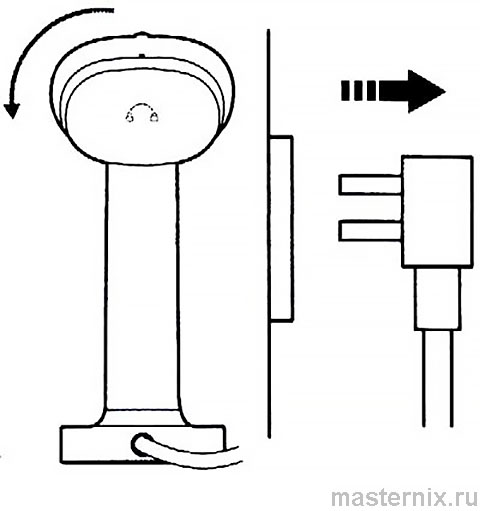

7. Power Off
After ironing, detach the water tank and drain any remaining water; press and hold the steam button until the steam stops. Then release the steam button, unplug the power supply from the outlet, and store the device after it has cooled down.
Maintenance and Care
❗👉➨ WARNING!: Before cleaning and servicing the device, turn it off and ensure it has cooled down.
1. To extend the service life of the device, it is recommended to fill the tank with purified water.
2. Regularly clean the water tank by rinsing it with water and drying it to prevent scale buildup.
3. Wipe the ironing surface with a damp cloth to keep the steam outlet holes clean and free of scale and blockages.
Precautions
To avoid damage, electric shock, injury, fire, fatality, and damage to equipment or property, always observe the following precautions.
Description of Symbols
WARNING! indicates a potential danger that may cause serious injury or fatality.
CAUTION indicates a risk of minor injury.
This symbol is used to warn the user of prohibited actions.
This symbol is used to remind the user of measures that must be followed for safe operation of the device.
WARNING! Power Cord and Plug
Do not use the device if the power cord or plug is damaged or hot to avoid electric shock, burns, or fire due to short circuit.
Do not use the device if the plug is not securely inserted into the outlet to avoid electric shock or fire due to short circuit. Do not insert or remove the plug with wet hands to avoid electric shock and injury.
Do not use the device with a tangled power cord to avoid electric shock or fire due to short circuit.
Do not damage, bend, pull, twist, compress, or place heavy objects on the power cord to avoid electric shock or fire due to short circuit.
Do not pull the power cord when unplugging to avoid cord damage, which could cause burns, electric shock, or fire due to short circuit.
Fully insert the plug into the outlet; ensure the voltage is 220 V; use a dedicated outlet and avoid using an extension cord to prevent electric shock or fire due to short circuit.
If the power cord is damaged, to avoid danger, it must be replaced with a suitable cord by the manufacturer, its service department, or a similarly qualified department.
WARNING! Operation and Storage
Do not block the steam outlet holes or insert foreign objects into them to avoid electric shock or fire due to short circuit.
Do not immerse the device in water.
Do not fill the tank with hot water to avoid deformation of the tank.
Do not use the device with wet hands as it may cause electric shock or fire due to short circuit.
Do not add cleaning agents, perfumes, starch, or other chemicals to the tank to avoid electric shock or fire due to short circuit.
Do not leave the device turned on for a long time to avoid fire due to short circuit.
Do not wrap the power cord around the main body of the device during storage to avoid cord disconnection and subsequent electric shock or fire due to short circuit.
After use, leave the device in a safe place for natural cooling; do not store it immediately and be cautious to avoid burns or fire from contact with flammable materials.
Store the device out of reach of children to prevent electric shock or fire due to short circuit.
Do not repair, disassemble, or modify the device yourself to avoid injury from fire or malfunction. For repairs, contact a service center.
Disconnect the device from the power supply when filling with water or cleaning.
Exercise caution when using this device to avoid burns from steam splashes. The device heats when powered on; always unplug it after use.
This device is not intended for use by children or persons with reduced physical, sensory, or mental capabilities unless supervised by a person responsible for their safety. Do not allow children to play with the device.
The device is not intended for commercial use.
In Case of Malfunctions
If you notice malfunctions such as no steam output, the device not heating, excessive water leakage, or smoke emission, immediately stop using the device, unplug it, and contact a service center. Using the device under these conditions may cause electric shock, injury, or fire due to short circuit.
During operation, the ironing surface is hot; do not touch it to avoid burns.
Do not drop or subject the device to strong impacts to avoid electric shock or fire due to short circuit.
Do not use a damaged ironing surface to avoid fabric damage.
Do not store the power cord in a twisted state to avoid cord disconnection and subsequent electric shock or fire due to short circuit.
.
Troubleshooting
No Steam
Possible cause:
— The device is not turned on
Solution:
— Turn on the device
Possible cause:
— The steam button is not pressed
Solution:
— Press the steam button
Possible cause:
— There is no water in the tank
Solution:
— Fill the tank with water
Noise During Operation
Possible cause:
— The pumping pump is operating
Solution:
— This is normal
Possible cause:
— There is no water in the tank
Solution:
— Fill the tank with water
Possible cause:
— The tank is improperly installed
Solution:
— Ensure the tank is properly installed
Water on the Ironing Surface
Possible cause:
— The device has not sufficiently heated
Solution:
— Wait for the device to heat up
Device Purpose
The steamer is a device designed for smoothing fabric products using a flow of hot steam.
Warranty Information
The manufacturer guarantees uninterrupted operation of the device throughout the warranty period, as well as the absence of defects in materials and workmanship. The warranty period begins from the date of purchase and applies only to new products. Warranty service includes free repair or replacement of parts that fail through no fault of the consumer during the warranty period, provided the device is operated according to the user manual. Repair or replacement of parts is performed at authorized service centers.
..
Rules and Conditions for Installation, Storage, Transportation, Sale, and Disposal
➠ The device does not require any installation or permanent fixation.
➠ Storage of the device must be carried out in packaging in heated rooms at the manufacturer and consumer premises at air temperatures from 5 °C to 40 °C and relative humidity not exceeding 80%. The rooms should not contain aggressive substances (acid or alkali vapors) that cause corrosion.
➠ Transportation of the device must be conducted in a dry environment.
➠ The device requires careful handling; protect it from dust, dirt, impacts, moisture, fire, etc.
➠ The sale of the device must comply with local legislation.
➠ After the end of the product’s service life, it must not be disposed of with regular household waste. Instead, it should be delivered to a collection point for electrical and electronic equipment for subsequent recycling and disposal in accordance with federal or local legislation. By ensuring proper disposal of this product, you help conserve natural resources and prevent damage to the environment and human health that could occur from improper handling. More detailed information about collection and disposal points can be obtained from local municipal authorities or waste disposal companies.
➠ If a malfunction of the device is detected, immediately contact an authorized service center or dispose of the device.
