User manual for Gree YBOF air conditioner remote control

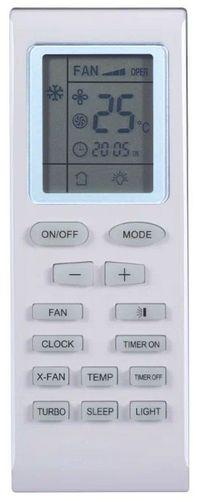

GREE Split-System Remote Control. Operating Instructions

YB1FA Air Conditioner Remote Control Compatibility

This remote control is supplied with the following models of equipment:

Wall-mounted Air Conditioners, Business Series Multi-Systems (2013)

Gree GWH18(09X2)MA-K1NNA4A
Gree GWH21(09+12)MB-K1NNA4A
Gree GWH24(12X2)MB-K1NNA4A

Wall-mounted Inverter Air Conditioners, Change Series (2011, 2015) R410A

Gree GWH09KF-K3DNA6A
Gree GWH12KF-K3DNAGA
Gree GWH18KG-K3DNAGA
Gree GWH24KG-K3DNA6A

Wall-mounted Inverter Air Conditioners, Change Arctic Series (2011, 2015)

Gree GWH09KF-K3DNA5A
Gree GWH12KF-K3DNA5A
Gree GWH18KG-K3DNA5B
Gree GWH24KG-K3DNA5B

Wall-mounted Split-Systems, Cozy Series (2015) R410A

Gree GWH07MA-K3NNA4A
Gree GWH07MA-K3NNC5A
Gree GWH09MA-K3NNB8A
Gree GWH09MA-K3NNB8B
Gree GWH09MA-K3NNC5A
Gree GWH09MA-KANNADA
Gree GWH12MB-K3NNB8A
Gree GWH12MB-K3NNB8B
Gree GWH24FANK3A1B
Gree GWH28FANK3A1A

Wall-mounted Air Conditioners, Cozy Series (2011)

Gree GWH07MA-K3NNA4A
Gree GWH09MA-K3NNA4A
Gree GWH12MB-K3NNA4A
Gree GWH18MC-K3NNA4A
Gree GWH24MD-K3NNA4A
Gree GWH24FANK3A1B
Gree GWH28FANK3A1A

Wall-mounted Split-Systems, Cozy Arctic Series (2015) R410A

Gree GWH09MA-K3NNA4F
Gree GWH09MA-K3NNC9F
Gree GWH12MB-K3NNC9F

Wall-mounted Air Conditioners, Cozy Arctic Series (2011)

Gree GWH09MA-K3NNA4F
Gree GWH18MC-K3NNA4F

Wall-mounted Air Conditioners, Bee Arctic Series (LAK) (2015)

Gree GWH09NA-K3NNA7A
Gree GWH12NB-K3NNA7A

Other Series

Gree GWH07PA-K3NNA3B
Gree GWH09PA-K3NNA3B
Gree GWH12PA-K3NNA3B

Precautions

➠ The GREE air conditioner is operated using a wireless infrared remote control.

➠ When operating, the distance between the remote control and the signal receiver on the indoor unit must not exceed 10 m. There should be no objects between the remote control and the unit that could block the signal.

➠ The remote control should be located at least 1 meter away from television and radio equipment.

➠ Do not allow any liquids to come into contact with the remote control, and do not expose it to direct sunlight or high temperatures.

➠ Do not drop or throw the remote control.

.

Designation of Remote Control Elements and Their Functions

This remote control is universal and is used for operating various models of GREE units. Some functions may not be available. When pressing a button with an unavailable function, the unit will continue operation without changing the parameters.

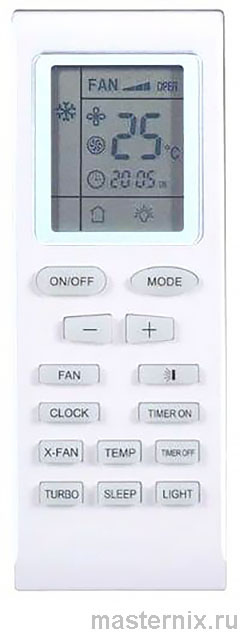

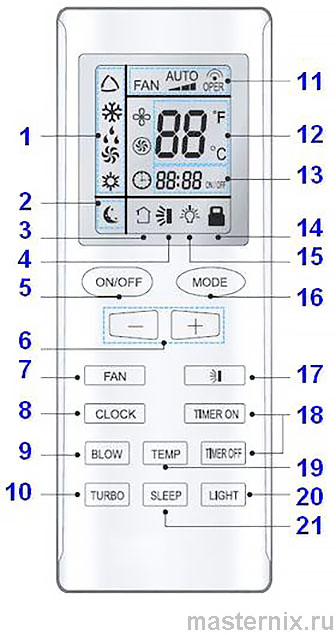

1. Operating mode indication (AUTO, COOL, DRY, FAN, HEAT)
2. Sleep mode indication
3. Indoor or outdoor temperature
4. Louver swing angle
5. ON/OFF
6. Temperature / timer setting
7. Fan speed setting
8. Clock setting
9. Blow function ON/OFF
10. Turbo mode setting
11. Fan speed indication (HIGH, MID, LOW, AUTO)
12. Room temperature / malfunction indication
13. Timer
14. Lock indicator
15. Backlight indicator
16. Operating mode selection
17. Automatic louver swing mode
18. Timer setting
19. Temperature indication button
20. Backlight
21. Sleep mode activation

ON/OFF

Press the button to turn the air conditioner on or off.

In standby mode, the remote control displays the room temperature.

MODE (Operating Mode)

Allows selection of the operating mode. Each time you press the button, the mode switches in the following sequence:

AUTO (Automatic), Cool (Cooling), Dry (Dehumidification), Heat (Heating), Fan (Fan only)

The display of the remote control shows the corresponding mode icons:

❗👉➨ For cooling-only air conditioners, the heating mode is not available.

..

SLEEP

Pressing this button alternately enables and disables the Sleep function. The symbol "" appears on the display of the remote control.

The function can be activated in cooling or heating modes.

In FAN and AUTO modes, the Sleep function is not available.

The Sleep mode is deactivated when the air conditioner is turned off.

FAN (Fan Speed)

This button is used to set the fan speed in the following sequence:

Auto – Low – Medium – High

The corresponding fan speed indicator is displayed:

In Auto mode, the fan speed is set automatically depending on the difference between the set temperature and the ambient temperature. In BLOW mode, the fan automatically operates at low speed.

CLOCK

Press the button to set the clock. The "" icon will start flashing on the display.

While the "" icon is flashing, within 5 seconds you must start setting the time using the adjustment buttons. The value will change by 1 unit every 0.5 seconds.

After setting the time, press the CLOCK button again to confirm. The icon will stop flashing. The "" icon appears on the display after power is supplied. The clock display area shows either the current time or the timer value, depending on the settings.

TEMP (Temperature)

Button for switching the temperature indication mode (not available on all models):

– set temperature, – indoor temperature, – outdoor temperature.

To switch from Celsius (°C) to Fahrenheit (°F), in OFF mode press the “-” and MODE buttons simultaneously.

“+” “-” Buttons

Pressing the “+” or “-” buttons respectively increases or decreases the set indoor air temperature.

If you press and hold one of the buttons for 2 seconds, the temperature value changes rapidly.

The temperature is displayed in degrees Celsius ("C) or Fahrenheit ("F).

Switching between Celsius and Fahrenheit is performed by pressing the “+” and “-” buttons simultaneously in OFF mode.

These buttons are also used to adjust the time in CLOCK and TIMER modes.

BLOW (Self-Cleaning)

Pressing the BLOW button in COOL (Cooling) or DRY (Dehumidification) modes enables or disables the self-cleaning function. The "" symbol appears on the display when the function is active. Pressing the button again disables the function, and the "" symbol disappears.

In AUTO, FAN, and HEAT modes, the function cannot be activated.

TURBO

Pressing the button activates the TURBO mode. In COOL or HEAT mode, the fan rotates at a higher speed compared to the available speed settings. The "" symbol appears on the display.

Changing the fan speed setting automatically deactivates TURBO mode.

LIGHT (Backlight)

Pressing the button turns on the backlight of the indoor unit panel. Pressing it again turns off the backlight.

Louver Swing Mode and Swing Angle

Each press of the button changes the louver swing angle and swing mode in the following sequence:

In modes "9", "8", "7", the swing angle for each airflow direction is the same regardless of the airflow direction.

Swing mode "1" covers the entire airflow range.

If the button is pressed and held for 2 seconds, the louvers will start swinging. When the button is released, the louvers will stop and remain fixed in the selected position.

In swing mode, pressing the button for more than 2 seconds will fix the louvers at the desired swing angle.

TIMER ON

Pressing the TIMER ON button sets the air conditioner’s timer to switch on. The timer display zone on the remote control activates, and the "HOUR ON" symbol begins flashing. Then use the "+" and "?" buttons to set the timer value.

Each press of the "+" or "?" button increases or decreases the time by 1 minute. If the button is held for 2 seconds, the minute value changes rapidly.

After setting the timer time, press the TIMER ON button again within 5 seconds while the timer display is flashing to confirm the setting. To cancel the TIMER ON mode, press the TIMER ON button again.

TIMER OFF

Pressing the button sets the air conditioner’s timer to switch off. The procedure for setting the time and deactivating the function is the same as for TIMER ON mode.

Air Conditioner Operation

Operating Sequence in Different Modes

➠ In cooling or heating mode, the air conditioner maintains the set temperature within ±1°C.

➠ If the set temperature in cooling mode is more than 1°C lower than the ambient temperature, the air conditioner will not switch on.

➠ If the set temperature in heating mode is more than 1°C higher than the ambient temperature, the air conditioner will not switch on.

➠ In AUTO mode, the temperature is not manually adjustable; the air conditioner automatically maintains a comfortable temperature of 23±2°C. If the temperature is +20°C, the unit will automatically start in heating mode. At +26°C, the unit will start in cooling mode.

➠ In DRY (Dehumidification) mode, the air conditioner maintains the set temperature within ±2°C. If, when switched on, the room temperature is more than 2°C above the set temperature, the unit will operate in cooling mode.

➠ When the temperature falls more than 2°C below the set temperature, the compressor and outdoor unit fan stop operating, while the indoor unit fan runs at low speed.

➠ In Sleep mode during cooling, after the first hour of operation, the set temperature automatically increases by 1°C; after the second hour, it increases by another 1°C. The set temperature then remains unchanged.

➠ In Sleep mode during heating, after the first hour of operation, the set temperature automatically decreases by 1°C; after the second hour, it decreases by another 1°C. The set temperature then remains unchanged.

❗👉➨ In Sleep mode, the TIMER function cannot be activated.

Additional Functions

BLOW Function (Self-Cleaning)

The BLOW (self-cleaning) function is intended for removing moisture from the evaporator surface and internal cavities of the unit. Removing moisture prevents the appearance and growth of bacteria inside the unit.

When the self-cleaning function is enabled, after switching off the unit with the ON/OFF button from COOL or DRY mode, the indoor unit fan runs at low speed for 10 minutes. The fan operation in BLOW mode can be forcibly stopped by pressing the BLOW button.

If the function is disabled, the indoor unit fan will not operate after switching off the unit with the ON/OFF button from COOL or DRY mode.

AUTO Mode

In AUTO mode, depending on the indoor air temperature, the air conditioner automatically starts operating in cooling or heating mode, creating comfortable conditions for the user.

TURBO Mode

In TURBO mode, the indoor unit fan operates at an extra-high speed in heating or cooling mode, creating an intense airflow that allows the room temperature to quickly reach the set value.

Remote Control Button Lock

If the remote control is in ON mode, pressing the “+” and “?” buttons simultaneously locks all remote control buttons. A symbol " " appears on the display. To unlock, press the “+” and “?” buttons again.

Forced Enabling/Disabling of Defrost Function

The defrost function (DEFROSTING) can be forcibly switched on or off. To do this, with the remote control in OFF mode, press the BLOW and MODE buttons simultaneously. The defrost mode will turn on or off depending on its previous state. When the function is enabled, the H1 symbol lights up in the temperature indication area.

If the function is enabled, when the air conditioner is switched on in heating mode, the H1 symbol will flash for 5 seconds. If the “+” and “?” buttons are pressed simultaneously during this time, the set temperature will be displayed instead of the H1 symbol.

Automatic Indoor Unit Defrost Function

If the indoor and outdoor temperatures are low, the heat exchanger of the indoor unit may start freezing. When the heat exchanger temperature reaches 0°C, the automatic defrost function is activated. The compressor and the fans of both the indoor and outdoor units stop operating. The indicator on the indoor unit panel flashes.

.

Operating Procedure

1. After connecting the air conditioner to the power supply, press the ON/OFF button to switch it on.

2. Use the MODE button to select COOL (cooling) or HEAT (heating) mode.

3. Press the TEMP button.

4. Use the “+” and “?” buttons to set the desired temperature in the range from 16°C to 30°C.
In AUTO mode, the temperature value is set automatically and cannot be adjusted from the remote control.

5. Use the FAN button to set the desired fan speed:

AUTO FAN (automatic), LOW – low speed, MID – medium speed, HIGH – high speed.

6. Use button [6] to set the louver swing mode. To enable the SLEEP, TIMER, TURBO, or LIGHT functions, press the corresponding buttons.

Replacing the Remote Control Batteries

➠ The remote control uses two 1.5V AAA batteries.

➠ To remove the batteries, slide the remote control cover in the direction of the arrow, remove the batteries, and insert new ones.

➠ Replace the cover on the remote control.

➠ Do not use an old and a new battery at the same time, or batteries of different types. Battery life should not exceed 1 year.

➠ If the remote control will not be used for an extended period, remove the batteries.

..

Emergency Switch

➠ In the event of loss or failure of the wireless remote control, the air conditioner can be switched on or off using the emergency switch.

➠ For models up to 5 kW, when operating with the remote control, the switch should be in the "RUN" position. In case of loss of the remote control, set it to the "AUTO" position. The "TEST" mode is not recommended for user activation; it is intended for testing the air conditioner after installation.

➠ For 5 kW and 6 kW models, pressing the switch button will start the air conditioner in automatic mode. Depending on the indoor temperature, the air conditioner will cool, heat, or operate in fan mode. If the air conditioner is running, pressing the button will stop it.
