Steam Cleaner DF A001 Operating Instructions
Thank you for purchasing this product. Please read this user manual carefully before using the appliance, even if you are already familiar with the device. This manual contains important safety instructions and guidelines for proper technical maintenance of the appliance.
Technical Specifications
Type: Steam Cleaner
Model: DF A001
Rated voltage: 220–240 V AC
Power, W: 1000
Operating temperature: from -20°C to 50°C
Steam pressure, bar: 3.3
Steam output, g/min: 28
Water tank capacity, ml: 450
Heating time, minutes: 2
Cord length, m: 3
Dimensions: 28 ? 13 ? 22 cm
Weight: 1.23 kg without accessories
Country of manufacture: China
Warranty period: 1 year
.
Important Safety Instructions
❗👉➨ Warning! Ensure that the nozzle does not overheat during operation.
❗👉➨ Risk of burns! Avoid contact with emitted steam. Always store this appliance in a place inaccessible to children!
When using electrical appliances, basic safety precautions must be observed, and the following instructions should be followed:
1. Do not leave the appliance switched on without supervision. Before each cleaning or maintenance operation, disconnect the appliance from the mains and before filling or emptying the water tank.
❗👉➨ Caution! The safety cap (water filling cap) must NOT be opened while the appliance is in use.
2. The appliance must be stored in a place inaccessible to children and must not be used by children.
3. For safety reasons, the appliance should be assembled only in accordance with the operating instructions, connected, and operated in compliance with all safety guidelines provided in this manual. Use only accessories recommended by the manufacturer or supplied with the appliance.
4. Before use, inspect the appliance for any signs of damage. Do not operate the appliance if it or its power cord or plug are damaged. To ensure safety and prevent hazardous situations, repair of electrical appliances must be carried out only by a qualified electrician.
5. Do not operate the appliance if the power cord or plug is damaged. Do not use the power cord to carry the appliance. Ensure that the power cord does not come into contact with hot surfaces.
6. Before use, check the appliance and power cord for any damage.
7. After use, disconnect the appliance from the power outlet.
8. Ensure that the appliance is not tilted more than 45° during operation.
❗👉➨ Do NOT direct steam towards people, animals, plants, or other electrical appliances. Never immerse the appliance in water.
9. Fill the appliance with water only. Do not use descaling agents, fragrances, detergents, etc. Filling the water tank with anything other than water may damage the handheld steam cleaner.

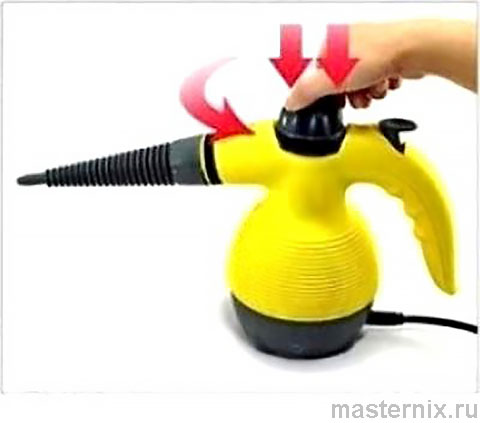

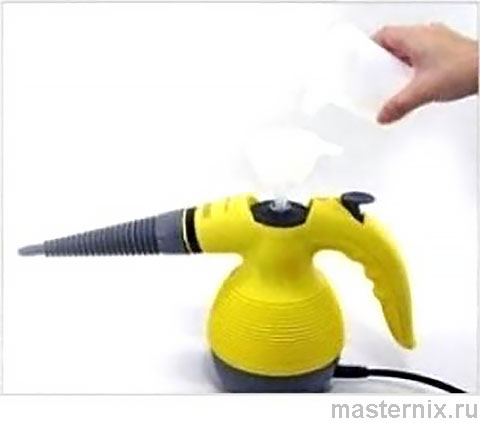

10. Water filling procedure:
1) Disconnect the appliance from the mains
2) Press the steam release button to discharge residual pressure
3) Allow the appliance to cool
4) Press the steam release button again to discharge residual pressure
5) Open the safety cap and remove it after approximately 5 minutes.
❗👉➨ 11. Attention! The appliance heats up during operation, therefore do not touch hot surfaces; touch only the handle or steam release button. Always allow the appliance to cool before removing or attaching any accessories.
12. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid danger.
13. Before each cleaning or maintenance operation, disconnect the appliance from the mains and allow it to cool sufficiently.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or by persons lacking experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Do not allow children to play with the appliance.
15. Liquid or steam must not come into contact with equipment containing electrical components, for example, inside ovens.
16. Do not open the water filling safety cap during operation.
17. Do NOT use the appliance near sinks, bathtubs, or shower stalls containing water, or near running water.
18. Do NOT leave the appliance unattended while operating, hot, or under pressure. Ensure that children cannot touch the hot and/or pressurized appliance, or pull the power cord.
19. Do NOT use the appliance if it has been dropped or if any part of it (including cord or plug) is damaged. The handheld steam cleaner must be inspected and/or repaired by a qualified electrician before use.
20. Do NOT use the appliance under or near flammable materials (such as curtains, petroleum, fuel, etc.).
..
Electrical Wiring
The handheld steam cleaner is equipped with a power cord with a grounding wire; therefore, it must be connected to a grounded power outlet. If you are unsure, consult a qualified electrician.
Never attempt to modify or replace the appliance’s power plug.
Ensure that the supply voltage corresponds to the voltage specified on the appliance’s rating plate.
Steam Warning Symbol:
Be cautious with hot steam! Risk of burns. To avoid burns from hot steam, do NOT touch hot surfaces or the steam nozzle during or immediately after use.

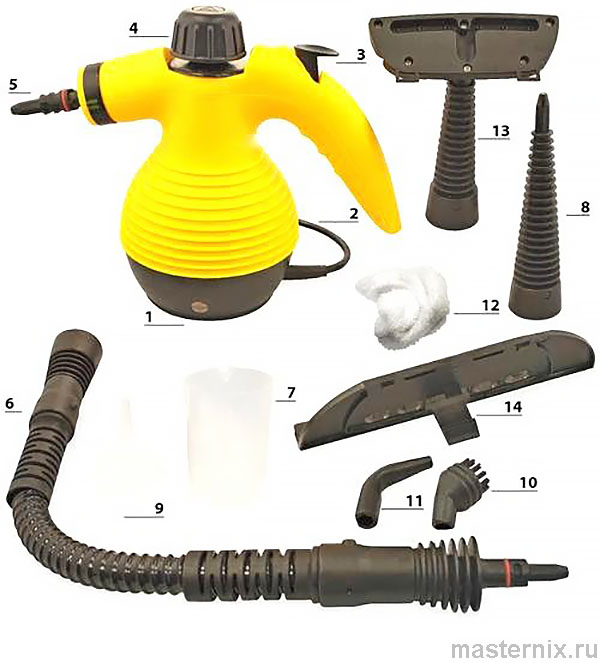

Product Description
1. Power indicator
2. Power cord and plug

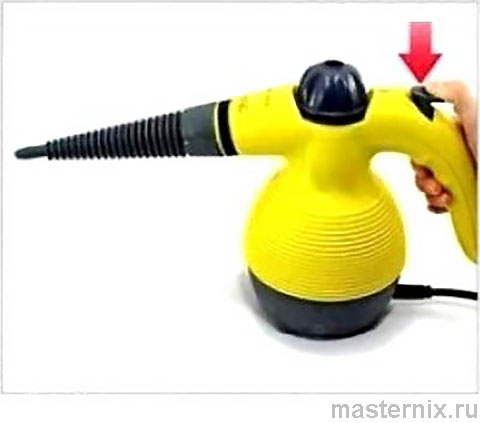

3. Steam release button
4. Safety cap
5. Short nozzle

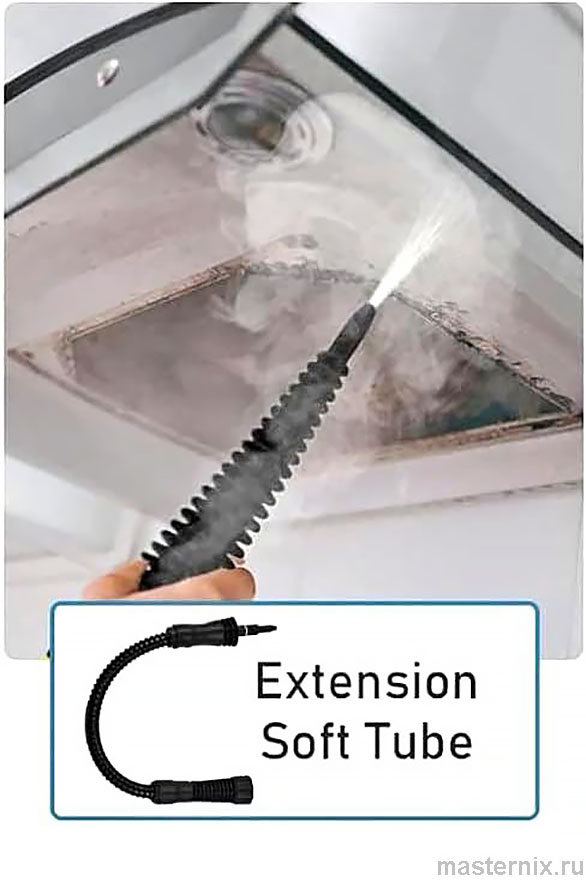

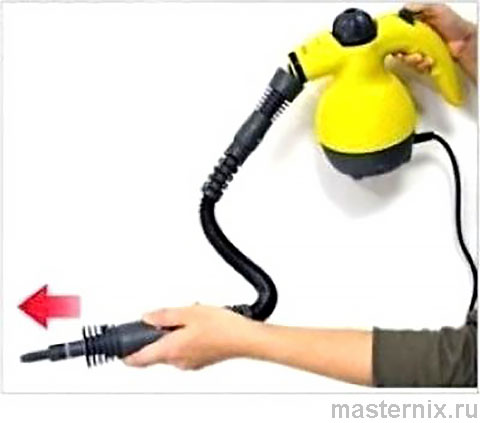

6. Long extension spray nozzle
7. Measuring cup

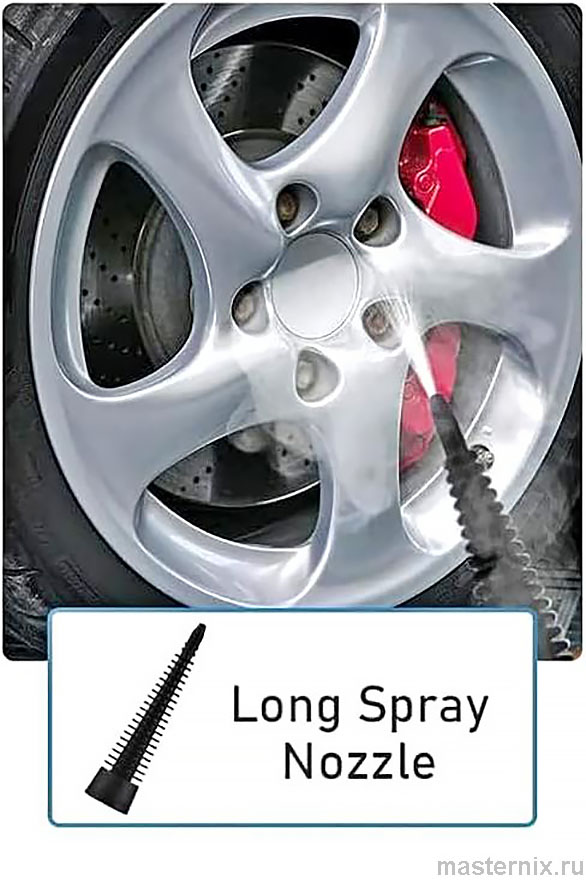

8. Long spray tip
9. Funnel

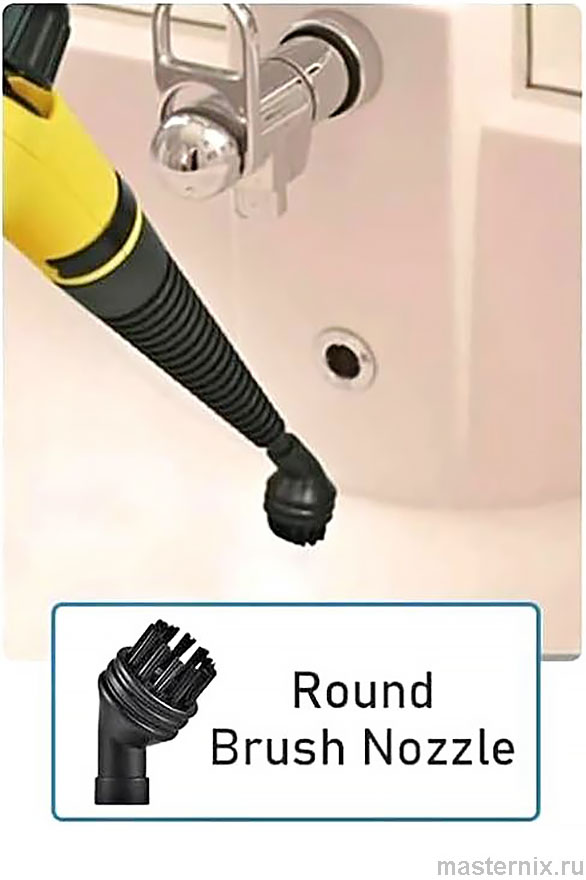

10. Spray tip with round brush

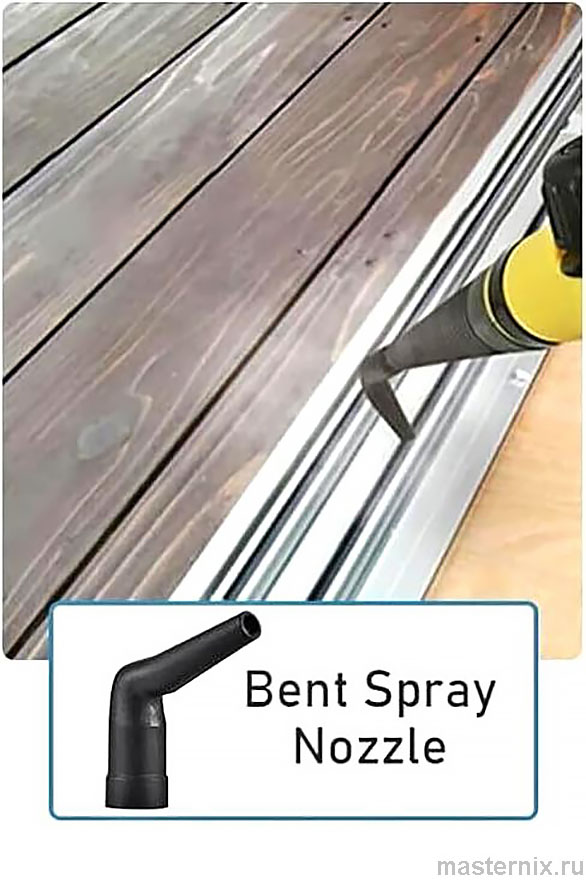

11. Angled spray tip
12. Cloth

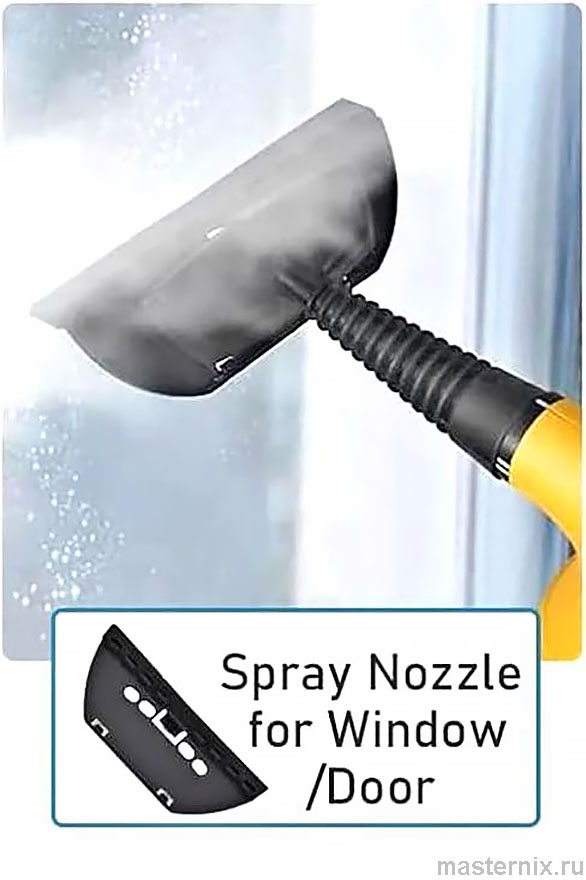

13. Spray tip for glass

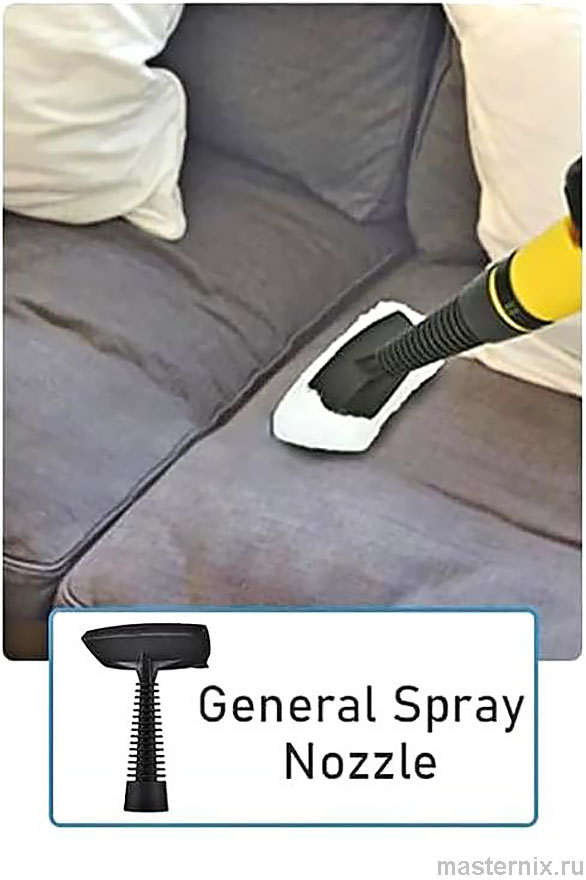

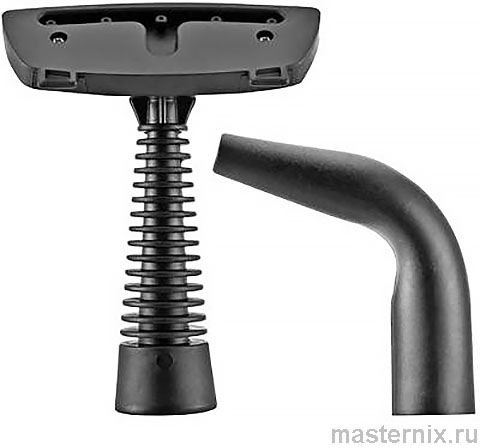

14. Brush attachment
...

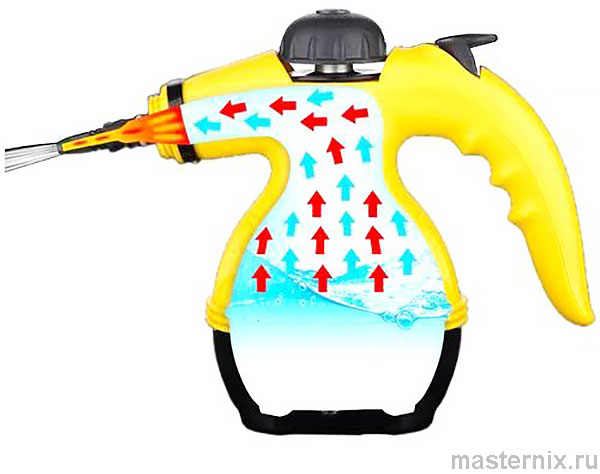

Principle of Operation of the Steam Generator
The principle of the steam generator’s operation is based on the effect of hot steam on dirt and contaminants. Steam penetrates into the dirt, softening and dissolving it, after which the dirt particles can be removed with a cloth or brush. The high temperature of the steam significantly enhances the cleaning process. Insoluble contaminants (such as grease deposits) are removed in a similar manner: under the influence of high-temperature steam, they soften, and the steam, combined with mechanical action on the contaminant, turns it into an emulsion consisting of small particles of dirt and water. This emulsion can then be easily wiped away with a cloth. In addition, hot steam effectively eliminates pathogenic microorganisms, bacteria, dust mites, mold, and fungi, which can cause allergic reactions and asthma.
During operation, the steam generator heats water in the tank to boiling temperature, converting it into steam, which then passes through the pipe and is delivered to the nozzle under pressure. The electronic circuit controls the water temperature in the tank, switching the heating on and off as necessary. The heating indicator on the appliance’s housing signals when the heating is active. This ensures a steady supply of steam.
....
