GF-07 GPS GSM GPRS Tracker SMS Global Locator User Manual

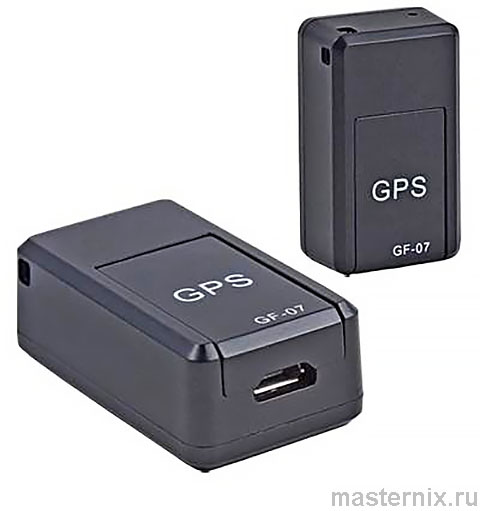

GF-07 Compact GPS Tracker. User Manual

Thank you for purchasing the GF-07 GPS tracker.

General Information

The GF-07 GPS tracker is used to monitor the location of valuable items that may be stolen or lost. It can be used to track the coordinates of a car, motorcycle, scooter, bicycle, drone, luggage, and even a person or a pet.

GF Series Tracker Models and Supported Functions

➠ GF-07: Magnetic mount. Audio recording. LBS positioning (via GSM base stations, low accuracy)
➠ GF-09: Magnetic mount. Audio recording. SOS button. LBS and WiFi positioning (increased accuracy), mobile application
➠ GF-21: Audio recording. SOS button. GPS, LBS, and WiFi positioning (high accuracy), mobile application
➠ GF-22: Magnetic mount. Audio recording. SOS button. GPS, LBS, and WiFi positioning (high accuracy), mobile application

❗👉➨ The GF-09/GF-21/GF-22 trackers operate with the "GPS365" application.

.

GF-07 Tracker Functions

- Voice recording
- Callback with voice control (when the sound level around the locator exceeds 40 dB, the locator will automatically call back)
- GPRS location request (coordinates based on the operator's GSM base stations, low accuracy)
- Real-time voice query
- Track location request
- Delete memory card contents
- Locator status request (all functions on or off, battery capacity, bound number, signal strength, frequency, GPRS, TF card, etc.)
- Restart or power off the locator
- Battery charge level is displayed each time a search response is received

Instructions for Using the GF-07 GPS Tracker

Charging

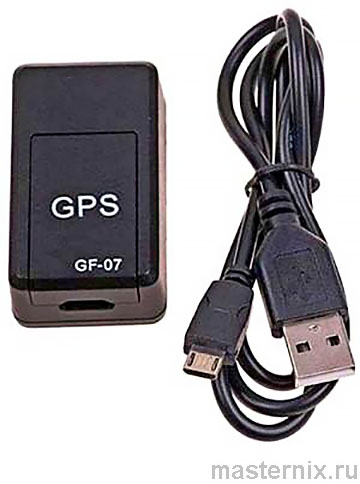

To charge the GF-07 tracker, use the USB cable included in the package and connect the tracker to a laptop or computer. You may also use a standard power adapter for charging from a wall outlet. The charging time is 2 hours. Charging should be performed with both the SIM and SD cards inserted.

❗👉➨ If the battery charge is insufficient (remaining charge below 5%), the tracker will stop functioning. Please charge the device in a timely manner. If the battery operates for a prolonged period without charging, it will inevitably lead to deep discharge, which will affect its performance and service life. If the locator is not in use, charge the battery to 60–80% and turn off the power of the locator. During long-term storage of the device, it is necessary to periodically (once every three months) recharge the battery.

..

Installing the SIM Card

A standard MINI-sized SIM card (the largest type) must be installed. The SIM card must support 2G (CDMA telecommunication cards are not supported).

❗👉➨ Before using the SIM card in the GPS tracker, you must remove the PIN code from it. Also ensure that GPRS, SMS, and voice services are available on the SIM card.

Open the card slot cover and insert the SIM card with the rectangular side first, not the cut corner. The SIM card format is MINI. The GF-07 tracker will automatically power on. The red indicator will light up and go out after some time, indicating that the tracker has detected the SIM card and is ready for operation. After 30 seconds, the device will enter standby mode.

Installing the Memory Card

The SD card is used for recording conversations.

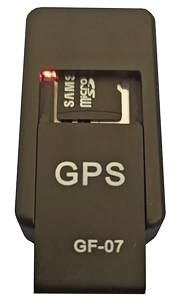

A memory card of up to 32 GB must be installed. The memory card is installed on top of the SIM card.

❗👉➨ Before using the memory card, it must be formatted to FAT32.

LED Indicator

The LED indicator lights up during startup and blinks when the battery charge is low.

Activating the Tracker

Primary bound number: using a mobile phone, send an SMS with the text 000 to the locator. In response, you will receive a message: [The set; Binding + master number – connection with the phone established].

Remote Control Commands for the Tracker

Audio Communication: Listen to the Sound Near the Locator

Dial the SIM card number of the locator from your phone. After a few seconds, you will be able to hear the sounds around the GF-07 locator. The locator will not emit any light or sound signals during this process.

Record Sound Around the Locator to the GF-07 Memory Card

Send an SMS with the text 555 from your phone to the locator. The device will later reply with a message: [Snd; recording started].

Alarm Mode. Sound Sensor

From your mobile phone, send an SMS with the text 666 to the locator's number to switch the GF-07 to alarm mode. The device will later reply with a message: [DT; has been successfully set sound monitor, alarm telephone callback]. When the ambient sound around the locator exceeds 40 dB, the GF-07 locator will automatically call the pre-set phone number.

GPRS Location Request

Send an SMS with the text 777 from your mobile phone to the locator's number. Later, you will receive a reply containing the geographical coordinates of the locator in Chinese and a link to Google Maps. The mobile phone map will be displayed after you open the link and the text address.

Locator Status

Send an SMS with the text 888. In response, you will receive a message containing information on battery capacity, bound phone number, signal strength, TF card capacity, etc.

Reset Functions

From your mobile phone, send an SMS with the text 999 to the locator's number. In response, you will receive a message indicating that the functions have been reset.

Delete Memory Card Contents

Send an SMS with the text 445. In response, you will receive a message indicating that the TF card has been cleared.

Shutdown

Send an SMS with the text 444. You will receive a reply on your mobile phone: “Reset; all tasks have been cancelled”.

Request for the Location Path

Use your phone to create a text message with the number 102 and send it to the locator’s number. Later, you will receive a reply on your mobile phone containing the account, password, and the gpsui.net website address. You can also track the location of the tracker on the website www.gps958.com. To do so, send the command 102 to the tracker, and in the reply SMS you will receive the login and password for access to the site.

Technical Specifications

Network: GSM / GPRS
GPS Bands: GSM 850/900/1800/1900 MHz
GPRS: TCP / IP
Memory Card Support: Max. 16 GB TF card (not included)
Charging Input: AC 110 - 220 V, 50/60 Hz
Output: DC 5 V, 300 - 500 mA
Battery: Built-in 3.7 V 400 mAh lithium-ion battery
Charging Time: 4 hours
Standby Time: 12 days
Operating Time: 3 - 5 days
GPS Positioning Time: 25 s
Operating Temperature: -20 to +55°C
Storage Temperature: -40 to +85°C
USB Cable Length: 65 cm
