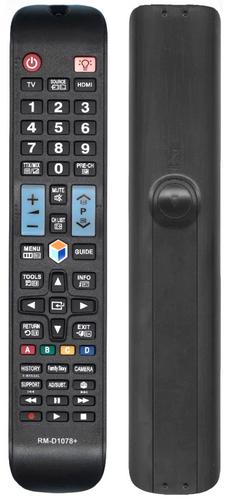

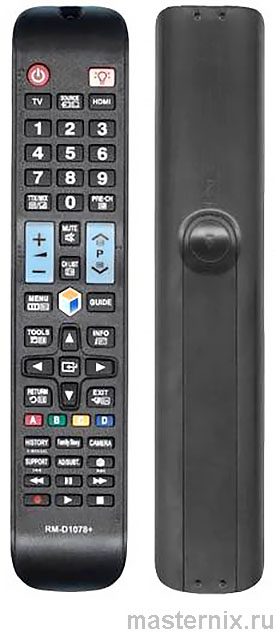

User Manual: Universal Remote Control RM-D1078+ for Samsung TV. Codes for RM-D1078+ Remote Control

Operating Instructions for the RM-D1078+ Universal Remote Control for Samsung TV

Thank you for using the RM-D1078+ universal remote control.
Before using this remote control for the first time, insert the batteries and test the device. If all functions work reliably during the initial test, no further configuration is required.

Introduction

RM-D1078+ is a remote control that provides quick access to frequently used functions and mode selection via a universal menu button. Easy setup and convenient operation make it the best choice in case of loss, damage, or replacement of your TV’s original remote control. The main feature of this remote is that it works without any configuration with any Samsung TV.

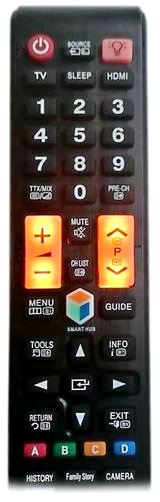

The RM-D1078+ universal remote control is equipped with automatic LED backlighting for the volume control and channel selection buttons, which activates when pressed and turns off after a few seconds to save power.

Technical Specifications

Product type: Universal remote control
Type: TV
Model: RM-D1078+
Manufacturer: HUAYU
Manufacturer code: HOD1379
Configuration: No setup required
Control type: Button-operated
Materials: Plastic, rubber
Housing material: Plastic
Total number of buttons: 49
Voltage, V: DC 3
Features: Suitable for any Samsung TV
Operating range, m: More than 8
Power supply type: 2 ? AAA batteries
Length: 257 mm
Thickness: 25 mm
Width: 50 mm
Weight: 99 g

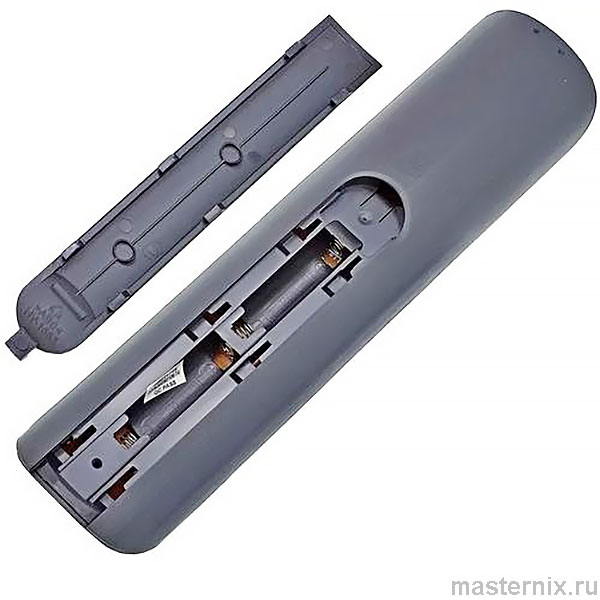

Installing Batteries in the RM-D1078+ Remote Control

The device is powered by two AAA batteries with a nominal voltage of 1.5 V. It is recommended to use alkaline batteries (LR03) to ensure stable and long-lasting operation. Batteries are not included in the package and must be purchased separately.

Open the battery compartment cover and insert two new AAA batteries, observing the + / ? polarity markings.

Battery Usage Recommendations

• The battery life under normal operating conditions is up to one year; reduced sensitivity or failure of the remote control may be due to battery discharge.
• Do not use new and used batteries together or mix different types of batteries.
• If electrolyte leakage occurs, clean the battery compartment with a soft cloth and replace the batteries.
• If the remote control will not be used for an extended period, remove the batteries to prevent leakage and device damage.

..

Using the HUAYU RM-D1078+ Remote Control

This remote control does not require prior configuration or code entry — TV operation is possible immediately after installing the batteries.

For proper operation, point the remote control at the device’s infrared sensor at an angle of no more than 30° from perpendicular and at a distance not exceeding 10 meters. The infrared signal may weaken if there are obstacles between the remote and the receiver or under bright ambient lighting.

Precautions:
➠ Avoid direct sunlight or strong artificial lighting on the device’s infrared sensor, as this may affect signal reception.
➠ Do not drop the remote control or expose its housing to moisture or liquids to avoid damaging the electronic circuitry.
➠ Keep the remote control out of the reach of children and pets to prevent mechanical damage or disassembly of the device.

Compatible Remotes:

AA50-00582A AA50-00638A AA50-00703A AA50-00706A AA50-00714A AA50-00741A AA50-00742A AA50-00797A AA50-00800A AA50-00801A AA58-00602A AA59-00370B AA59-00382A AA59-00399A AA59-00570A AA59-00581A AA59-00603A AA59-00796A AAS0-00560A AAS0-00799A

BN50-006854 BN53-00938A BN58-01015A BN58-01040A BN58-01084A BN59-00507A BN59-00512A BN59-00529A BN59-00531A BN59-00557A BN59-00559A BN59-00603A BN59-00604A BN59-00609A BN59-00681A BN59-00683A BN59-00684B BN59-00686A BN59-00687A BN59-00705A BN59-00706A BN59-00859A BN59-00860A BN59-00863A BN59-00901A BN59-00936A BN59-00937A BN59-00939A BN59-00940A BN59-00942A BN59-01005A BN59-01012A BN59-01012A BN59-01014A BN59-01014A BN59-01069A BN59-01078A BN59-01081A BN59-01175N BN59-01178C BN59-01178F BN59-011898 BN59-01198C BN59-01198D BN59-01198Q BN59-01199G BN59-0119BC BN59-01248A BN59-01268D BN59-01268E BN59-01298L BN59-01305A

❗👉➨ Please note: the above list represents the models of remote controls replaced by this device, not the list of TV models.
