User manual remote control Philips RC-2043/01B

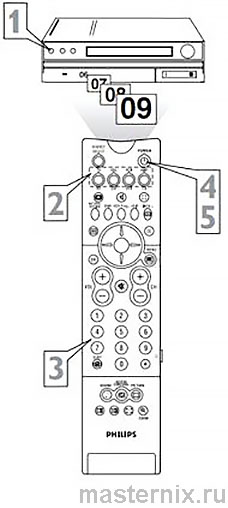

PHILIPS RC-2043/01B PROGRAMMING THE TV REMOTE TO OPERATE ACCESSORY DEVICES

The Auto Search Method of programming the remote control can take several minutes to complete. So before starting, it is recommended that you sit in a comfortable position at least six feet from the accessory device. You will have to hold the remote so that it is pointed at the front of the device for the entire time the search is taking place.

1. Turn the accessory device on using the device’s power button.

2. Press the desired Mode button that corresponds to the type of device you wish to operate—CBL, VCR, AMP, HD, SAT, DVD, or CD. A green light will indicate the mode labeled on the top of the button, while a red light will indicate the mode labeled on the bottom of the button. If needed, hold the button down and the light will toggle between the green and red settings.

3. Press and hold the 1 and 3 Digit (Number) buttons at the same time until the Backlight and selected Mode buttons light up. Then release both buttons.

4. Press and release the red POWER button on the remote control. The Backlight buttons and the selected Mode button will turn off.

The remote will start the Auto Search of all available codes, sending a command to channel up. The backlight will blink after each code is tried. For devices such as DVD or CD players, insert a disc and press PLAY on the device. The remote control will send a command to switch to the next track. Switch AV receivers to the tuner function

IMPORTANT!: Watch the channel indicator of your accessory device closely. Once the right code is found, the channels on your device will start to scan up.

.

5. Press and release the red POWER button on the remote control as soon as the channels start to change. The Backlight buttons and selected Mode button will blink twice to indicate the Auto Search code setup is complete.

NOTE: If any other buttons are pressed during the procedure, the Auto Search will end.

Remember, Auto Search can take several minutes to complete, so please be patient

SETUP CODES FOR ACCESSORY DEVICES

Amplifier

Aiwa 0433
Carver 0296
Curtis Mathes 0327
Denon 0187
GE 0105
Harman/Kardon 0919
JVC 0358
Linn 0296
Magnavox 0296
Marantz 0296, 0348
Nakamichi 0348
Optimus 0422
Panasonic 0335
Philips 0296, 0919
Pioneer 0040, 0327
Realistic 0422
Sansui 0348
Sony 0716, 0247
Soundesign 0105
Technics 0335
Victor 0358
Wards 0040, 0105
Yamaha 0381

..

Cable Box

ABC 0030, 0028, 0034, 0035, 0038, 0040, 0041, 0044
Allegro 0180, 0342
Americast 0926
Antronix 0049
Archer 0049, 0180, 0824
Belcor 0083
Bell & Howell 0041
Cable Star 0083
Cabletenna 0049
Cableview 0049
Century 0180
Citizen 0180, 0342
Colour Voice 0052
Comtronics 0067
Contec 0046
Eastern 0029
Emerson 0824
Everquest 0042, 0067
Focus 0427
GC Electronics 0083
Garrard 0180
Gemini 0042
General Instrument 0303, 0503, 0038, 0837
GoldStar 0067, 0171
Goodmind 0824
Hamlin 0047, 0036, 0286, 0061
Hitachi 0038
Hytex 0034
Jasco 0042, 0180, 0342
Jerrold 0030, 0039, 0303, 0041, 0038, 0503, 0042, 0837
Memorex 0027
Movie Time 0090
NSC 0090
Oak 0046, 0034
Optimus 0048
Panasonic 0048, 0134, 0027
Paragon 0027
Philips 0052, 0180
Pioneer 0171, 0560, 0904
Popular Mechanics 0427
Pulsar 0027
Quasar 0027
RCA 0048
Radio Shack 0042, 0342, 0910, 0824
Recoton 0427
Regal 0047, 0286
Regency 0029
Rembrandt 0038
Runco 0027
SL Marx 0067
Samsung 0067, 0171
Scientific Atlanta 0035, 0044, 0504, 0904
Signal 0042, 0067
Signature 0038
Sprucer 0048
Starcom 0030, 0042
Stargate 0067, 0042, 0824
Starquest 0042
Sylvania 0028
TV86 0090
Tandy 0285
Teleview 0067
Texscan 0028
Tocom 0039, 0040
Toshiba 0027
Tusa 0042
Unika 0180, 0049
United Artists 0034
Universal 0049, 0083, 0180, 0218
Viewstar 0285, 0090
Zenith 0027, 0552, 0926
Zentek 0427

CD Player

Aiwa 0184
Burmester 0447
California Audio Labs 0056
Carver 0184, 0206, 0464
DKK 0027
Denon 0030, 0900
Emerson 0332
Fisher 0201, 0206
Garrard 0420, 0447
Genexxa 0059, 0332
Harman/Kardon 0200, 0184
Hitachi 0059
JVC 0099
Kenwood 0055, 0217, 0853, 0064, 0653, 0708
Krell 0184
LXI 0332
Linn 0184
MCS 0056
MTC 0447
Magnavox 0184, 0332
Marantz 0184, 0056, 0207
Mission 0184
NSM 0184
Nikko 0201
Onkyo 0128, 0895
Optimus 0447, 0059, 0206, 0495, 0464, 0332, 0027, 0064, 0172
Panasonic 0056, 0330
Parasound 0447
Philips 0184, 0653
Pioneer 0059, 0495, 0271, 0332
Proton 0184
QED 0184
Quasar 0056
RCA 0080, 0332, 0206, 0791
Realistic 0206, 0207, 0447
Rotel 0184, 0447
SAE 0184
Sansui 0184, 0332
Sanyo 0206
Scott 0332
Sears 0332
Sharp 0064, 0207, 0888
Sherwood 0207
Sony 0027, 0212, 0517
Soundesign 0172
Tascam 0447
Teac 0420, 0447, 0201, 0207
Technics 0330, 0056
Victor 0099
Wards 0080, 0184
Yamaha 0214, 0063
Yorx 0488

Surround Sound Receiver

ADC 0558
Adcom 0643
Aiwa 0148, 0432, 0185, 0216
Akai 0251, 0103
Capetronic 0558
Carver 0035, 0216, 0387, 0069
Casio 0222
Clarinette 0222
Curtis Mathes 0107
Denon 0031, 0798, 0300
Emerson 0451
Fisher 0069, 0246, 0387
Garrard 0451, 0490
Harman/Kardon 0137, 0216, 0918
Inkel 0089
JBL 0137
JVC 0101
Kenwood 0054, 0341, 0104, 0069, 0213, 0340
Koss 0451
LXI 0208
Linn 0216
Lloyd's 0222
MCS 0066, 0373
Magnavox 0216, 0418, 0558, 0155, 0222
Marantz 0216, 0155, 0066
Modulaire 0222
NAD 0347
NEC 0262
Nakamichi 0374, 0124
Onkyo 0162, 0407, 0127
Optimus 0208, 0204, 0213, 0246, 0558, 0765, 0828, 0069, 0697
Panasonic 0066, 0336, 0545
Penney 0222
Philips 0216, 0418
Pioneer 0107, 0041, 0177, 0558, 0657
Quasar 0066
RCA 0081, 0373, 0558, 0387, 0557
Realistic 0208, 0222, 0190
Sansui 0216, 0220, 0373
Sanyo 0246, 0828
Scott 0190, 0349
Sharp 0213
Sherwood 0529, 0518, 0089
Sony 0185, 0195, 0501
Soundesign 0697
Teac 0490, 0190
Technics 0336, 0066, 0235, 0545
Victor 0101
Wards 0081, 0041, 0107, 0185, 0216
Yamaha 0203, 0213
Yorx 0222
Zenith 0884

Satellite

AlphaStar 0799
Amplica 0099
Amway 0102
Astro Industries 0122
BSR 0122
Capetronic 0122
Channel Master 0045, 0239
Chaparral 0080, 0236, 0243
Curtis Mathes 0088, 0099
DX Antenna 0068
Drake 0091, 0272, 0045, 0176
Echostar 0307, 0802, 0175, 0186, 0296
Expressvu 0802
General Instrument 0388, 0896, 0654
HTS 0802
Hitachi 0846
Homecable 0265
Hughes Network Systems 0776
Hytek 0122
IQ 0237
IQ Prism 0237
JVC 0802
Janeil 0179
Jerrold 0388, 0654
Legend 0296
Macom 0088, 0045
Magnavox 0749, 0751
Memorex 0296, 0751
Next Level 0896
Panasonic 0179, 0728
Philips 0227, 0749, 0751
Pico 0102
Primestar 0654, 0388
RCA 0593, 0170, 0882
Radio Shack 0896
Ramsey 0102
Realistic 0079
STS 0237, 0068
Sony 0666
Star Choice 0896
Star Trak 0207
Toshiba 0109, 0817, 0088
Uniden 0265, 0079, 0101, 0397, 0751, 0103, 0749
Zenith 0091, 0883, 0088

.

VCR

Admiral 0075, 0236
Adventura 0027
Aiko 0305
Aiwa 0334, 0027, 0064
Akai 0133, 0068, 0088
America Action 0305
American High 0062
Asha 0267
Audiovox 0064
Beaumark 0267
Bell & Howell 0131
Brocksonic 0236
Broksonic 0148, 0211, 0029, 0236, 0506
CCE 0099, 0305
Calix 0064
Canon 0062
Capehart 0047
Carver 0108
Cineral 0305
Citizen 0305, 0064
Colt 0099
Craig 0064, 0099, 0074, 0267, 0298
Curtis Mathes 0062, 0068, 0087, 0189
Cybernex 0267
Daewoo 0305, 0588, 0047, 0072
Daytron 0047
Denon 0069
Dynatech 0027
Electrohome 0064
Electrophonic 0064
Emerex 0059
Emerson 0211, 0029, 0236, 0305, 0148, 0235, 0506, 0588, 0088, 0239, 0027, 0064,0070
Fisher 0074, 0131, 0081
Fuji 0060, 0062
Funai 0027
GE 0062, 0087, 0075, 0229, 0267
Garrard 0027
Go Video 0459, 0553
GoldStar 0064, 0065
Gradiente 0035, 0027
HI-Q 0074
Harley Davidson 0027
Harman/Kardon 0065, 0108
Harwood 0099
Headquarter 0073
Hitachi 0069, 0132, 0027, 0068
Hughes Network Systems 0069
JVC 0094, 0035, 0068
Jensen 0068
KEC 0064, 0305
KLH 0099
Kenwood 0068, 0094, 0065
Kodak 0062, 0064
LXI 0064
Lloyd's 0027, 0235
Logik 0099
MEI 0062
MGA 0070, 0088, 0267
MGN Technology 0267
MTC 0027, 0267
Magnasonic 0305
Magnavox 0062, 0108, 0027, 0066, 0176
Magnin 0267
Marantz 0108, 0062
Marta 0064
Matsushita 0062, 0189, 0481
Memorex 0131, 0074, 0027, 0064, 0075, 0062, 0073, 0267, 1064, 0334, 0066, 0236, 1189, 1289
Minolta 0132, 0069
Mitsubishi 0070, 0088, 0075, 0094
Motorola 0062, 0075
Multitech 0027, 0099
NEC 0065, 0068, 0094, 0131
Nikko 0064
Nikon 0061
Noblex 0267
Olympus 0062
Optimus 1089, 1189, 0075, 1289, 0064, 1075, 0131, 0189, 0459, 0481
Optonica 0089
Orion 0506, 0029, 0211, 0236
Panasonic 0062, 1189, 0189, 0252, 0481, 0643
Penney 0062, 0267, 0064, 0069, 0065, 0081
Pentax 0069, 0132
Philco 0062, 0236, 0506
Philips 0108, 0062, 0089, 0645, 1108, 1208
Pilot 0064
Pioneer 0094
Portland 0047
Profitronic 0267
Proscan 0087, 0229
Protec 0099 Pulsar 0066
Quarter 0073
Quartz 0073
Quasar 0062, 0189, 0481, 1189
RCA 0087, 0176, 0229, 0069, 0132, 0062, 0075, 0133, 0267
Radio Shack 0027, 1064
Radix 0064
Randex 0064
Realistic 0027, 0131, 0074, 0075, 0064, 0062, 0089, 0073
ReplayTV 0641, 0643
Ricoh 0061
Runco 0066
STS 0069
Samsung 0072, 0267
Sanky 0066, 0075
Sansui 0068, 0506, 0027, 0094, 0236, 0298
Sanyo 0074, 0073, 0131, 0267
Scott 0211, 0148, 0070, 0072, 0239
Sears 0081, 0132, 0064, 0069, 0027, 0062, 0073, 0074, 0131
Semp 0072
Sharp 0075, 0089
Shintom 0099
Shogun 0267
Singer 0099
Sony 0060, 0061, 0059, 0027, 0062
Sylvania 0062, 0108, 0027, 0070
Symphonic 0027
TMK 0235, 0267
Tatung 0068
Teac 0027, 0068
Technics 0062, 0189
Teknika 0027, 0062, 0064
Thomas 0027
Tivo 0645
Toshiba 0072, 0239, 0070
Totevision 0064, 0267
Unitech 0267
Vector 0072
Vector Research 0065
Video Concepts 0072, 0088
Videosonic 0267
Wards 0062, 0087, 0089, 0027, 0074, 0239, 0267, 0069, 0075, 0099, 0108, 0176
White Westinghouse 0305, 0236
XR-1000 0099, 0027, 0062
Yamaha 0065
Zenith 0066, 0027, 0060, 0061, 0236, 0506

..

DVD Player

Harman/Kardon 0609
JVC 0650, 0585
Kenwood 0561
Magnavox 0530
Mitsubishi 0548
Onkyo 0654, 0530
Panasonic 0517, 0659
Philips 0530, 0566
Pioneer 0598, 0552, 0659
Proscan 0549
RCA 0549
Samsung 0600
Sharp 0657
Sony 0560
Technics 0517
Theta Digita 0598
Toshiba 0530
Yamaha 0517, 0572
Zenith 0618, 0530
